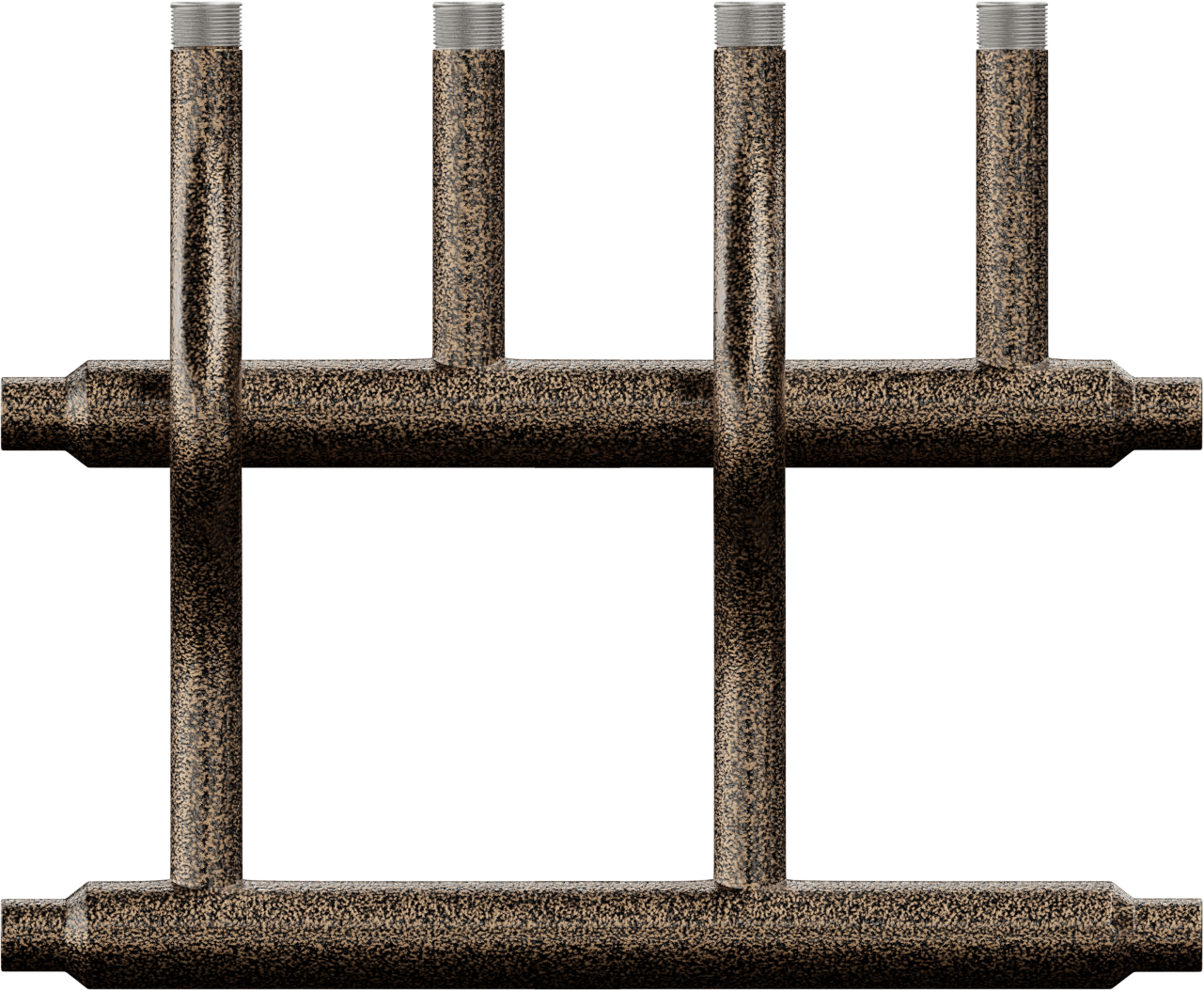

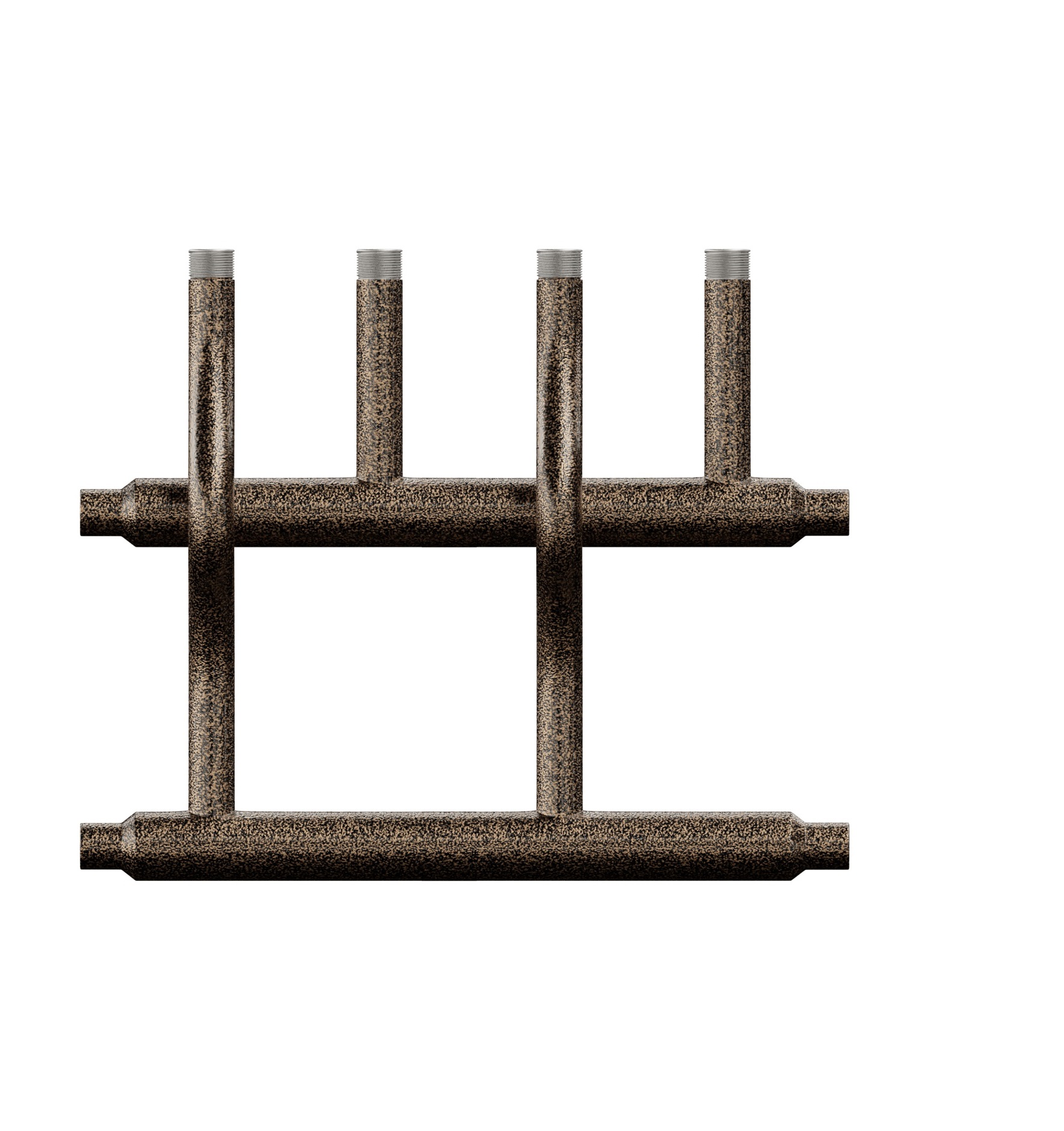

Connecting manifolds: 2D+, non-insulated
- For 2 vertical heating circuits 1" (ext.) + 1 additional horizontal one
- Without insulation
- Black steel construction
- Antic gold powder painted
- Universal spacing for heating circuits - 125mm
- 100% pressure check

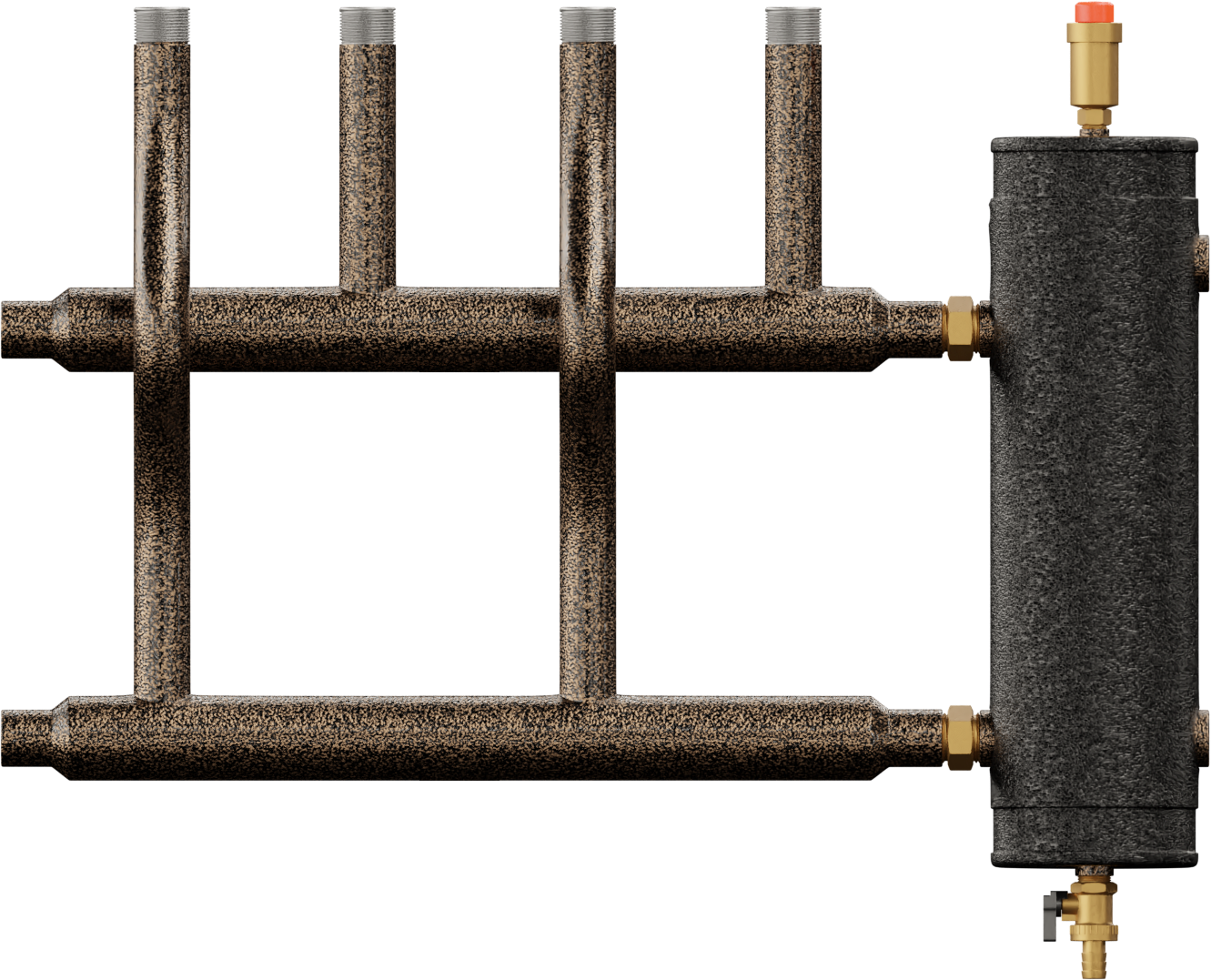

- Compatible with SHE low loss headers - all types
- Compatible with pump units - majority of those in the market
- Possibility to create larger sets
- Versions with 5/4" vertical circuits against order
- Versions with flange connections (DN65-125) against order
Please check our YouTube channel for more info
Pobierz kartę katalogową
| Item | Model |
|---|---|
|
502040 |
Manifold 2D+, 1'' (int) |
|
502070 |
Manifold 2D+, 5/4'' (int) |
|
502100 |
Manifold 2D+, 6/4'' (ext) |
|
502115 |
Manifold 2D+, 2'' (ext) |
|
502156 |
Manifold 2D+, 2'' (ext) |
